Cold Room

Product details

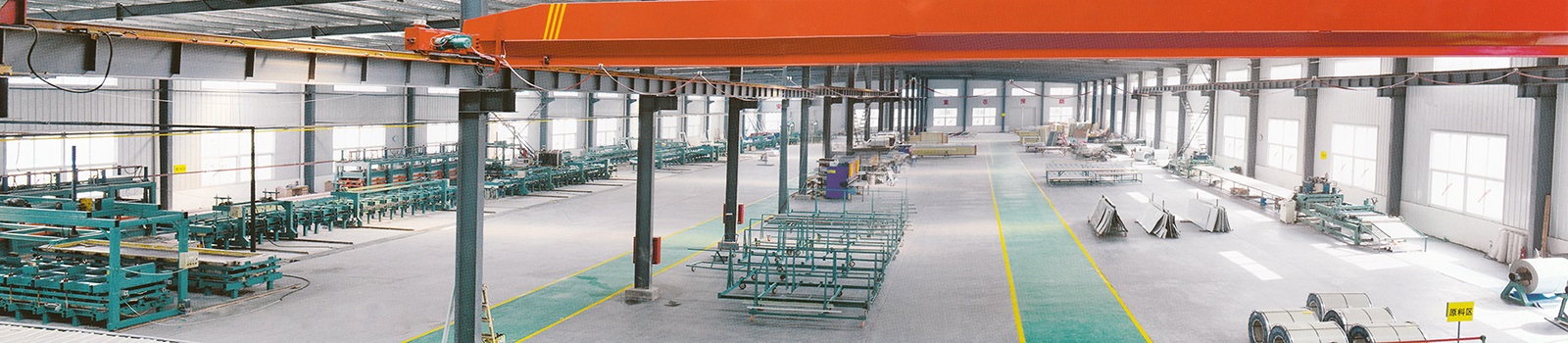

Production Workshop of the Cold Room


The factory has automatic cutting machine, high-pressure foaming machine, automatic laminating machine, CNC cutting machine, folding machine and other advanced equipment. Products include: cold storage board, cold storage door, refrigeration unit, etc. Products are widely used in food, beverage, medicine, aquatic products, electronics and machinery industries.



Cold Room PanelCold Room Panel


The cold room panel is made of rigid polyurethane foam as thermal insulation material and the color coated steel sheet, stainless steel sheet or embossed aluminum sheet as the covering sheet.


It is one-time injected foaming, finished bonding molding with the polyurethane high-pressure injection machine.


It is light in weight, high in strength, good in heat insulation, corrosion resistance, anti-aging, moth proofing, non-toxic, and mildew free.


Its superiority will be shown more significantly in low temperature environment.

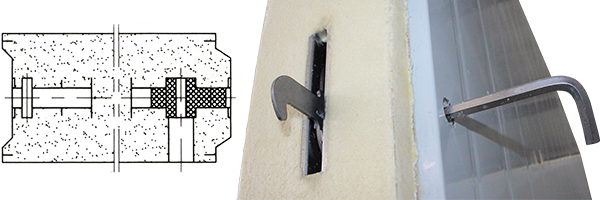

The cold room panels are connected with the cam locks embedded inside. The whole panels surface is flat after assembling.


The specialized and standardized production are implemented in the cold room panels, which has strong interchangeability. Through different combinations, a variety of specifications and types can be formed for selection: single room, double rooms, suite or multi rooms. It provides convenience for users to make full use of the existing site and building space.

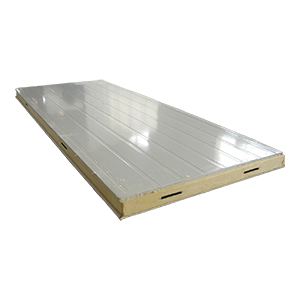

Cold Room Panel

Specification of the cold room panel:


thickness (mm): 75, 100, 120, 150, 180, 200

width (mm): 960

length (m): 1~12

density (kg/m³): 38~50

heat conductivity (W/m·k): ≤ 0.024

compressive strength (kPa): ≥ 160

bending resistance strength (N/cm2): ≥24.5

tensile strength (N/cm2): ≥24.5

water absorbing property (cm2): ≤3

self-extinguishment property (sec): ≤6



Cold Room Door

Semi-embedded Door
Semi-embedded Door

Swing Door, Hinged Door.

Half of the door panel is in the door frame, and another half is higher than the door frame.

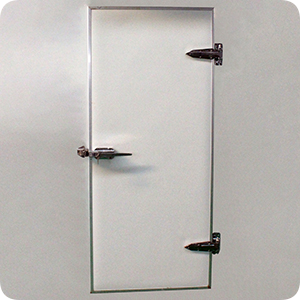

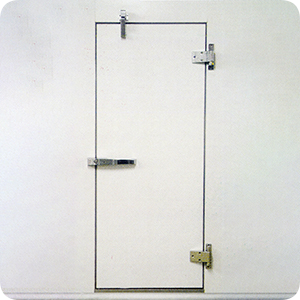

Full Embedded Door
Full Embedded Door

The door panel is flush with the wall panel.

It can close automatically.

Manual Sliding Door
Manual Sliding Door

Simple Structure.

Light Weight.

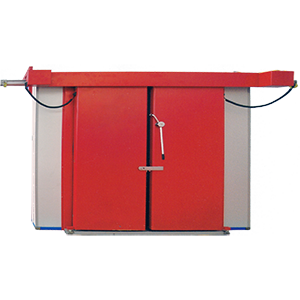

Biparting Electric Sliding Door
Biparting Electric Sliding Door

Modern Techniques.

Aluminum Alloy Door Frame.

Synchronous Driven by the Double Racks Single Motor.

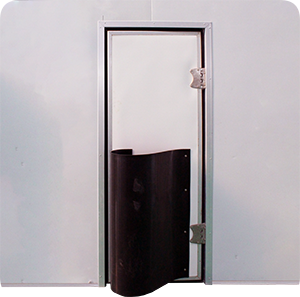

Impact Traffic Door
Impact Traffic Door

Adjustable Spring Hinge.

Easy to Adjust.

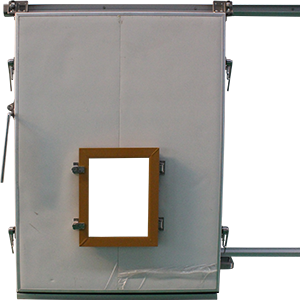

Controlled Atmosphere Door
Controlled Atmosphere Door

Used for the Controlled Atmosphere Cold Room.

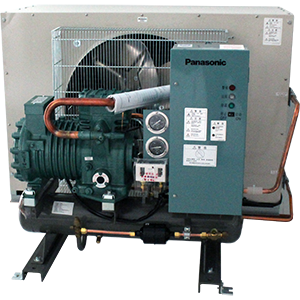

Refrigerated Compressor Unit

Our compressor unit equips the world famous brand compressor and carries out strict tests to ensure its performance.

The refrigeration unit is safe and reliable with complete safety protection system of high pressure, low pressure, oil pressure difference, overload and overheating.

Advanced PLC control can realize remote monitoring.

Energy control is carried out in different levels to save energy and electricity.

It has strong environmental adaptability and small floor area. It can work well under high or low temperature conditions.

The brand of compressor we are using: Bitzer, Copeland, Emerson, Frascold, Fusheng, Hanbell, Refcomp, etc.

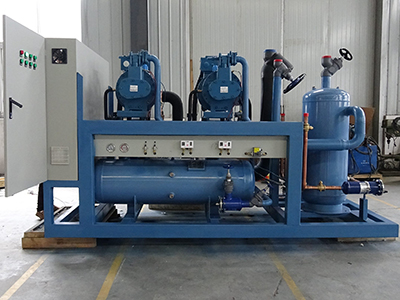

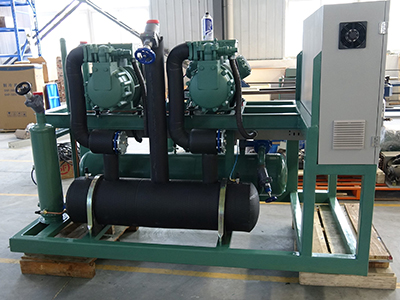

Piston Parallel Unit
Piston Parallel Unit

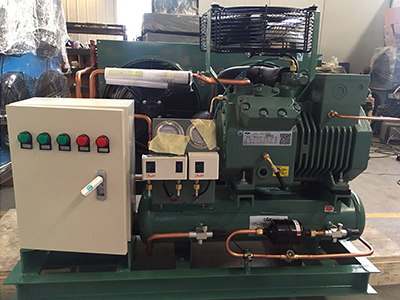

Single Piston Unit
Single Piston Unit
Screw Parallel Unit
Screw Parallel Unit

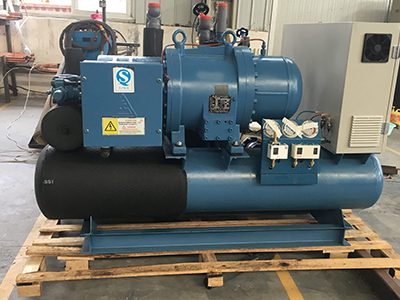

Single Screw Unit
Single Screw Unit

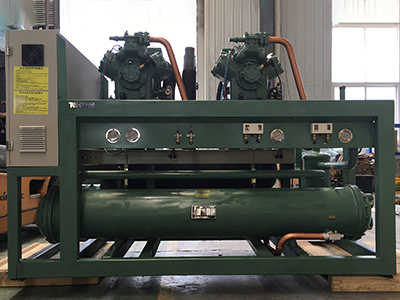

Water Cooling Unit
Water Cooling Unit

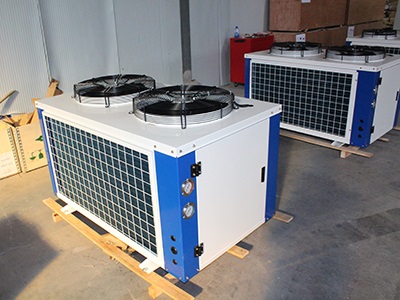

Fully Enclosed Unit
Fully Enclosed Unit


Air CoolerAir Cooler


The air cooler is a kind of cooling equipment suitable for all kinds of cold rooms.


It has the advantages of compact structure, light weight, no use area of cold storage, uniform temperature and high efficiency.


It makes the food stored in the cold room cool down rapidly and greatly improves the freshness of the stored food.

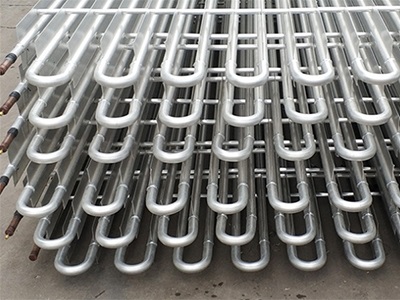

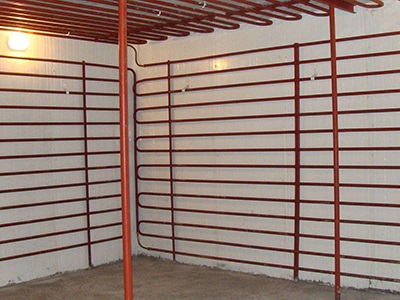

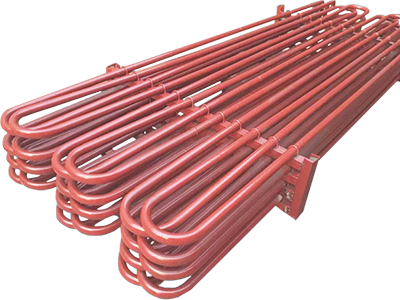

Calandria

Due to the good thermal conductivity, high refrigeration efficiency, fast cooling speed, power saving, no noise, as well as a certain effect of cold storage, the calandria can effectively shorten the working time of the compressor, make the shutdown time longer, minimize the dry consumption of the cooled food, and achieve better preservation effect and constant temperature and humidity effect. It is a high cost performance evaporator.

Calandria
Calandria
Calandria
